eGlass 35" Transparent Lightboard with Built-in Camera

Make Thinking Visible. Boost Engagement Like Never Before.

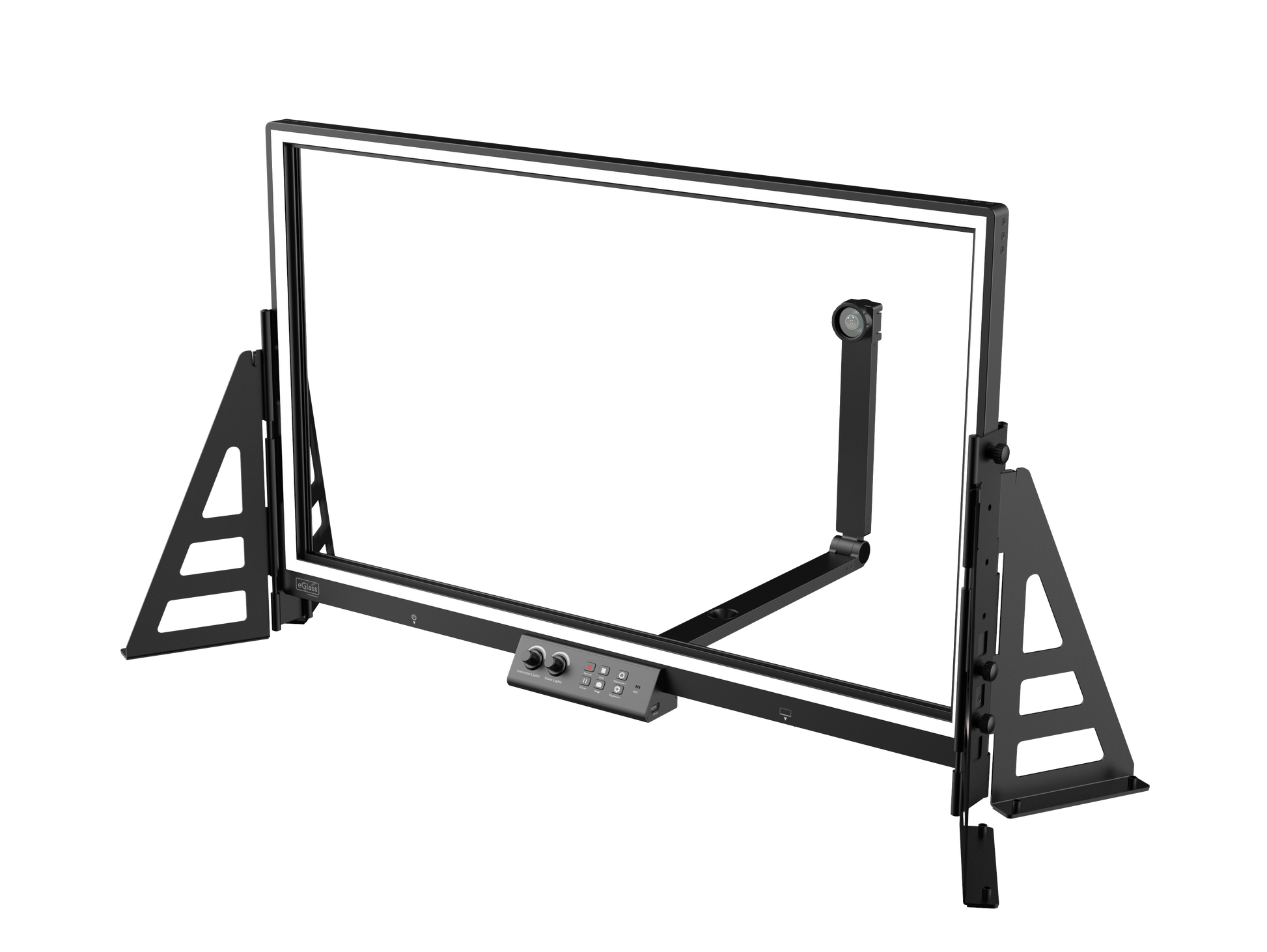

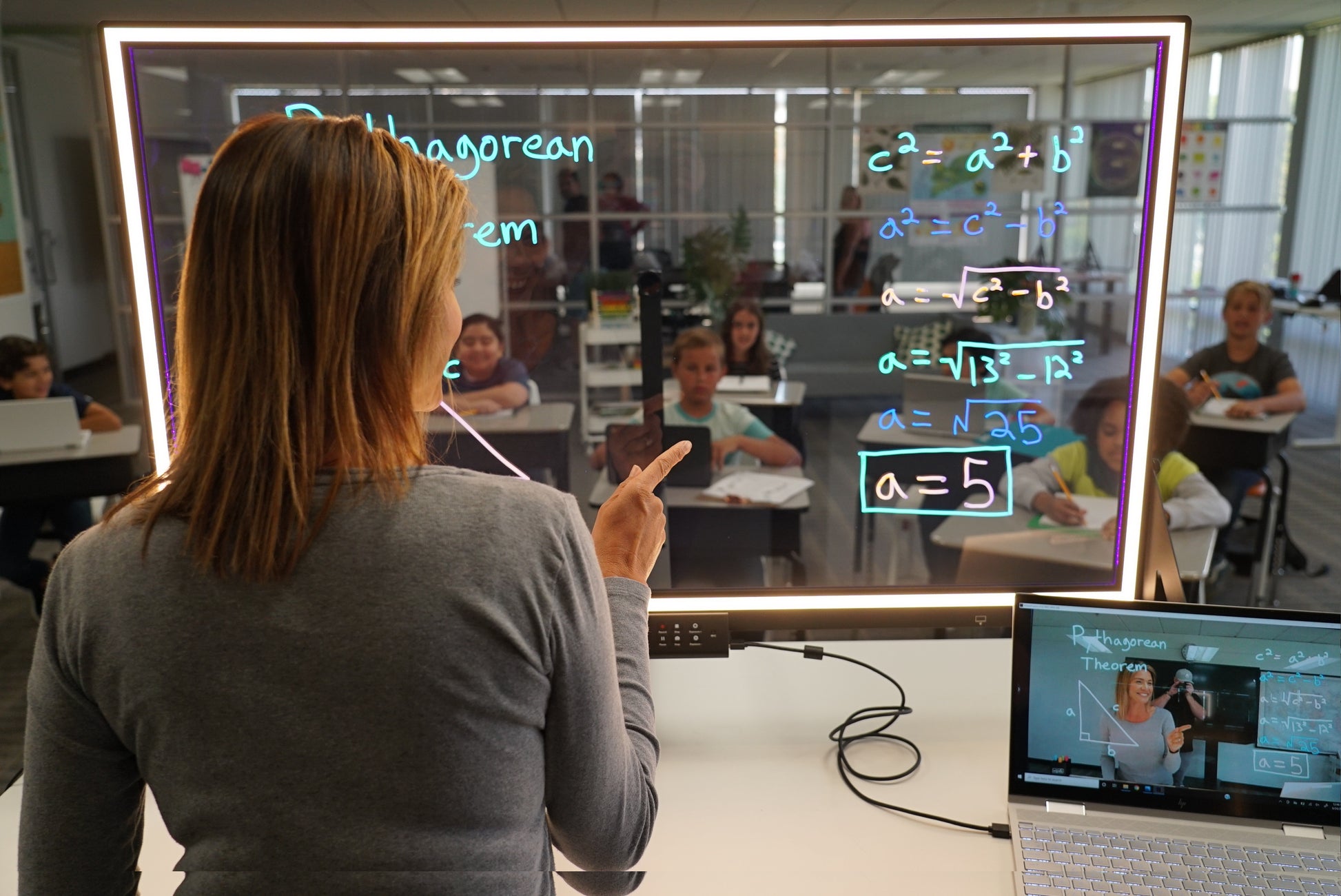

The eGlass 35" is a fully integrated illuminated transparent lightboard with a built-in camera. It lets you face your students (in-person or online) while writing naturally on glass—no turning your back, no backward writing. The camera captures your face, gestures, and writing in the same frame, flipping the image automatically so students see everything correctly-no need to write backwards. ChromaClear technology makes neon ink glow vividly against any background.

Whether you’re teaching hybrid, recording lessons for flipped classrooms, or delivering PD, eGlass simulates eye-to-eye contact, reduces cognitive load, supports SEL, and keeps every student engaged—front row, every time.

Key Features & Benefits

• Built-in 8MP Camera + Automatic Image Flip: Face + writing in one frame; wide 88.16° FOV; 1080p/30fps live video and recording.

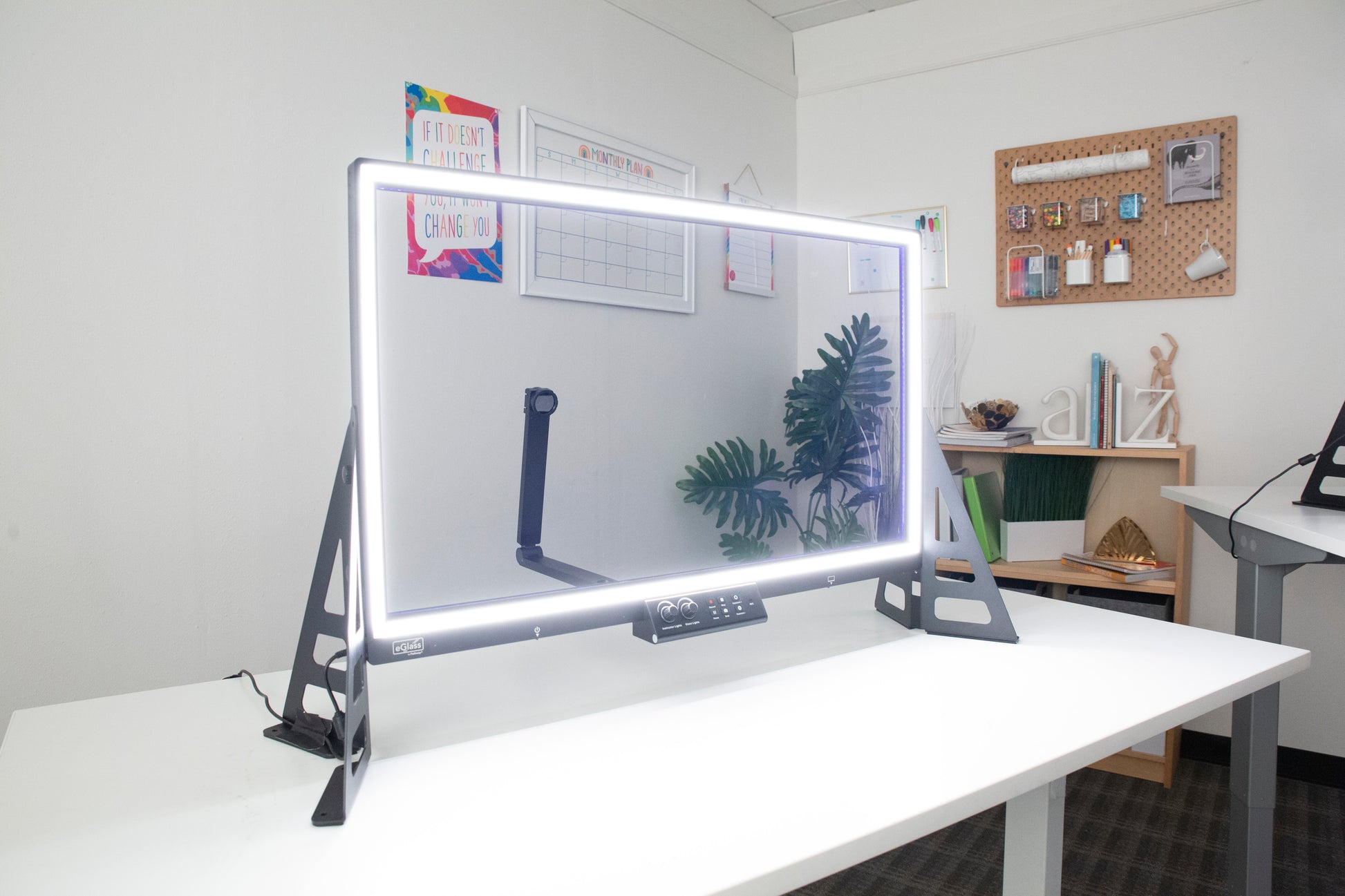

• ChromaClear Illumination: Adjustable internal glass LEDs (for glowing ink) + external instructor LEDs (6,000–12,000 lumens). Control panel buttons for lights, exposure, record, snapshot, and more.

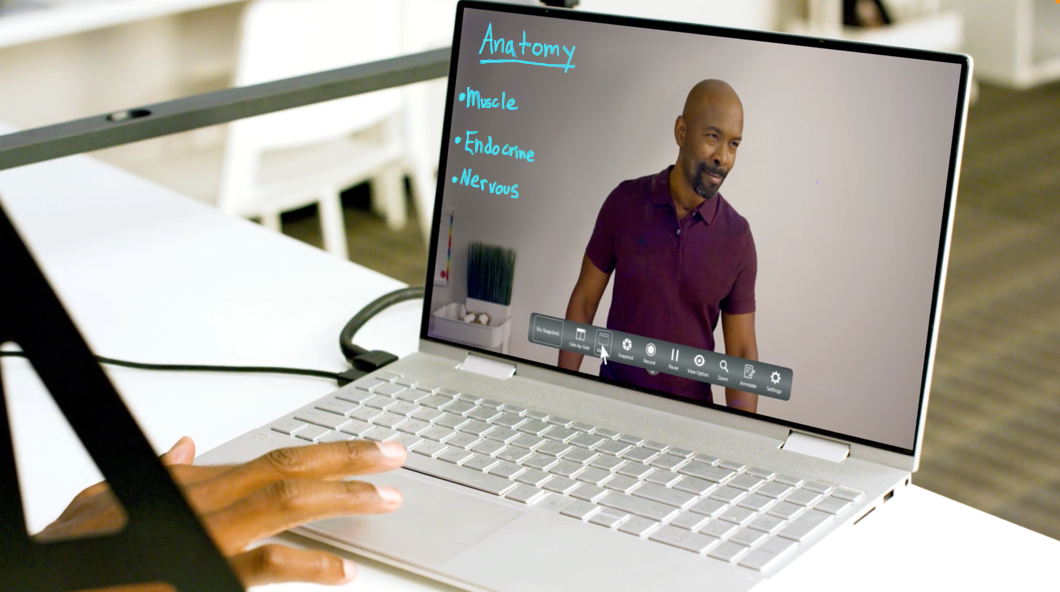

• Hybrid & Video Conferencing Ready: Fully compatible with Zoom, Teams, Google Meet, etc. Use as USB webcam or with eGlass AppCam for enhanced features without screen sharing.
• Built-In Microphone and Recording: Take snapshots and record videos directly onto your computer - eGlass connects as a USB webcam and USB microphone
• No Learning Curve: Write like a normal whiteboard. Works in any lighting; darkens backgrounds easily.
• 5-Year Warranty (parts & labor in USA). Ridiculously rugged 6mm scratch-resistant tempered glass.

What’s Included:

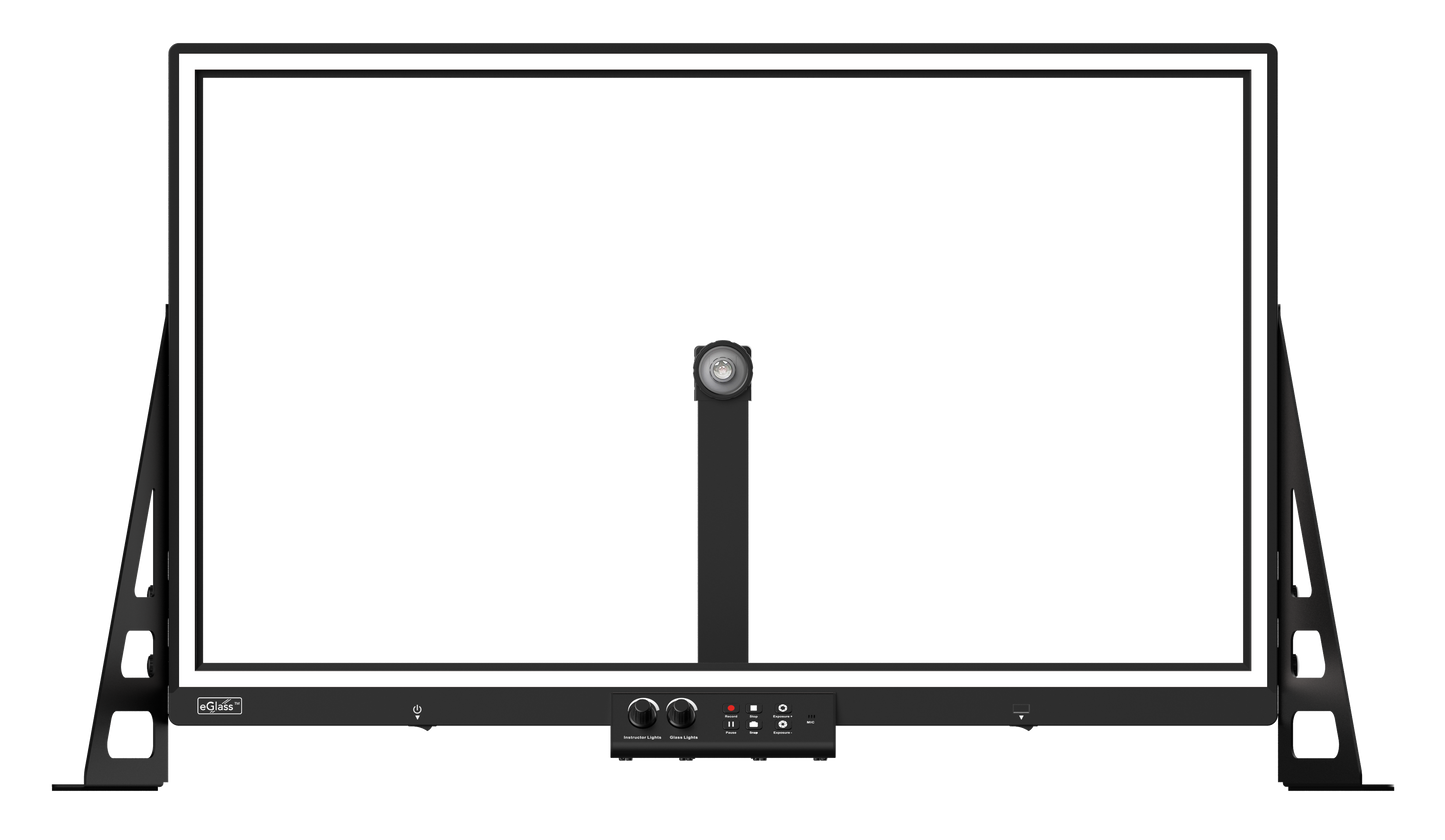

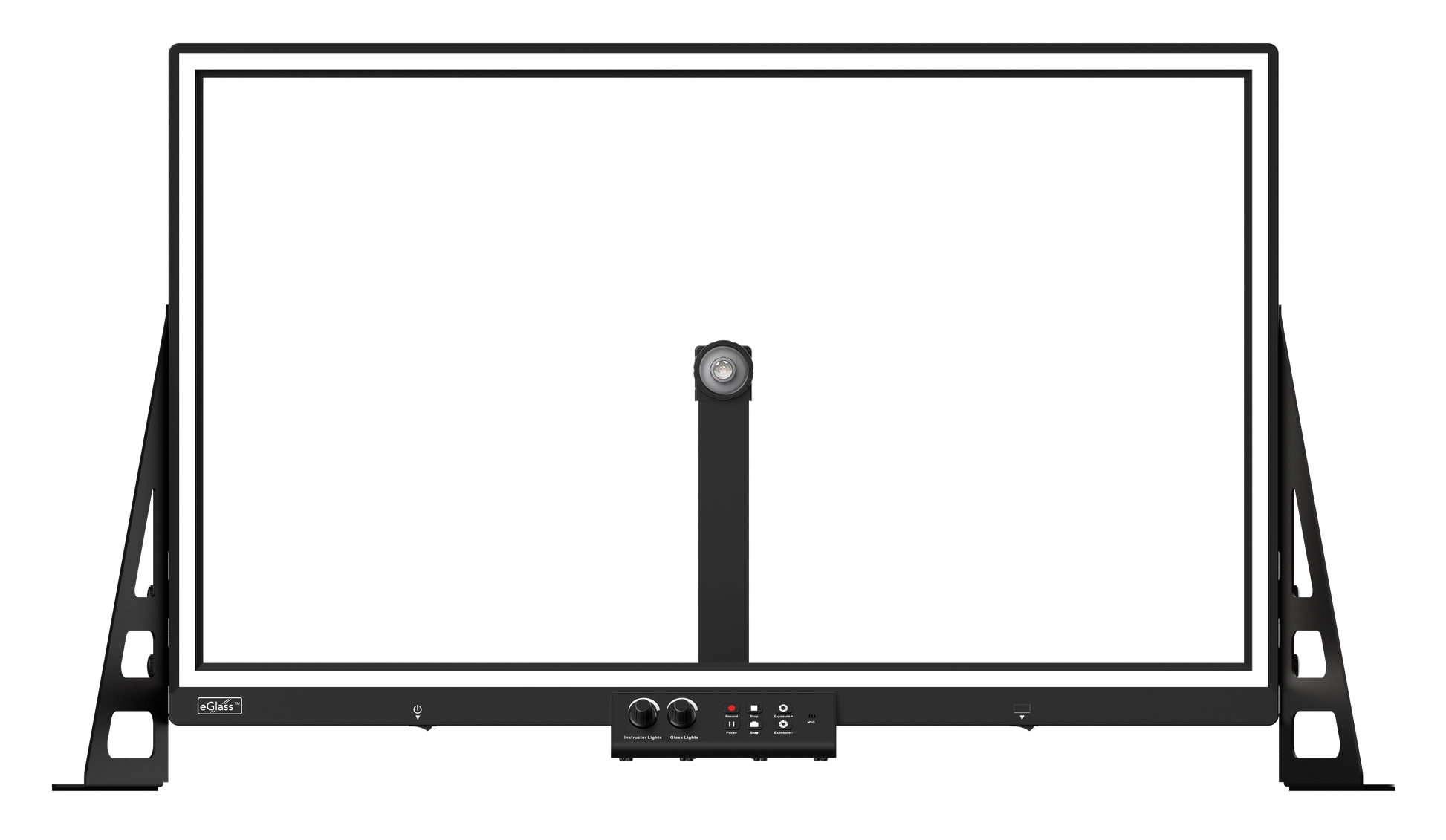

• Main eGlass 35" Frame (35" diagonal writing surface: 30.5" L × 17.5" H)

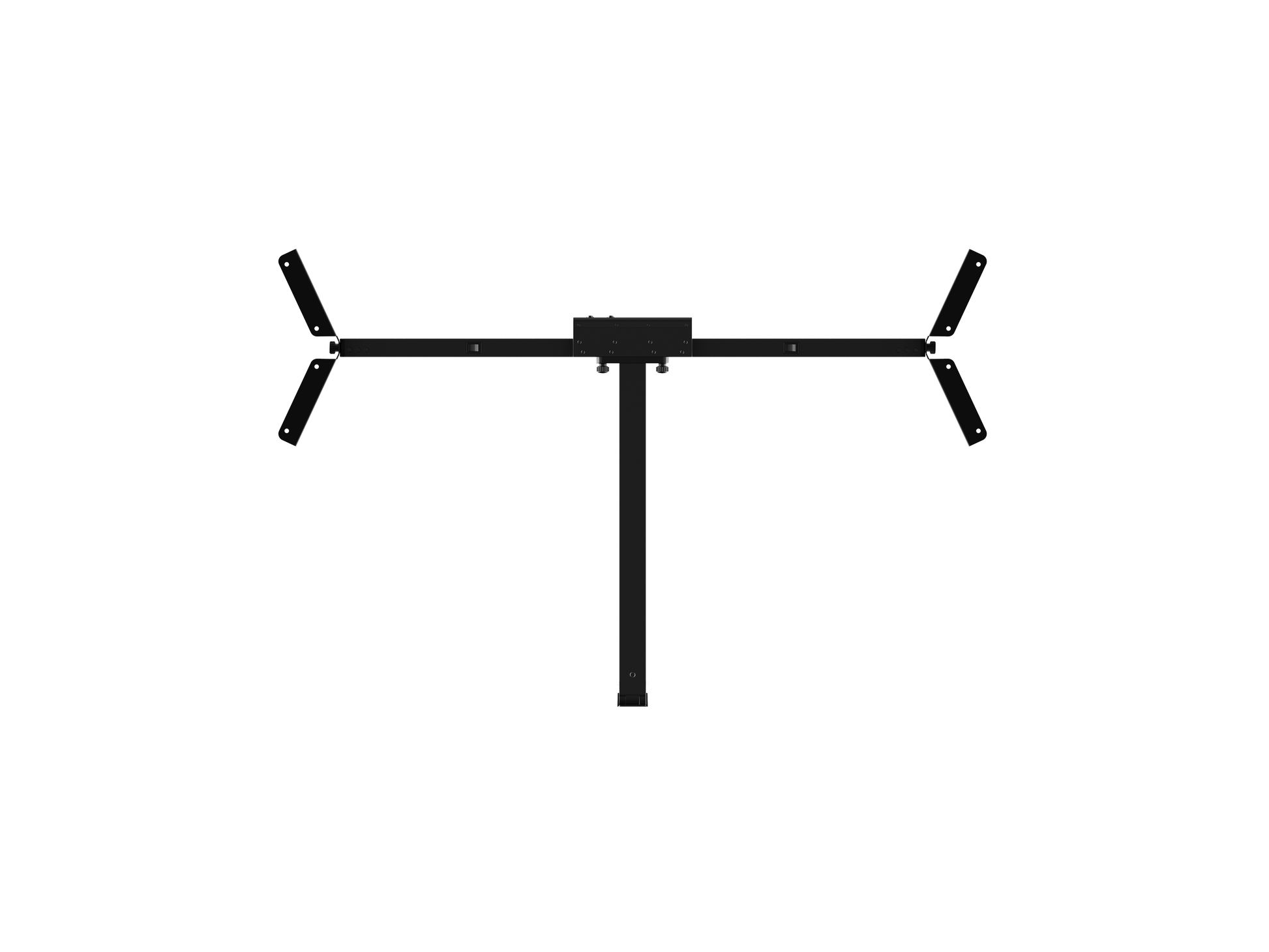

• 2× Adjustable Support Legs (heights: Low 22", Med 24", High 26")

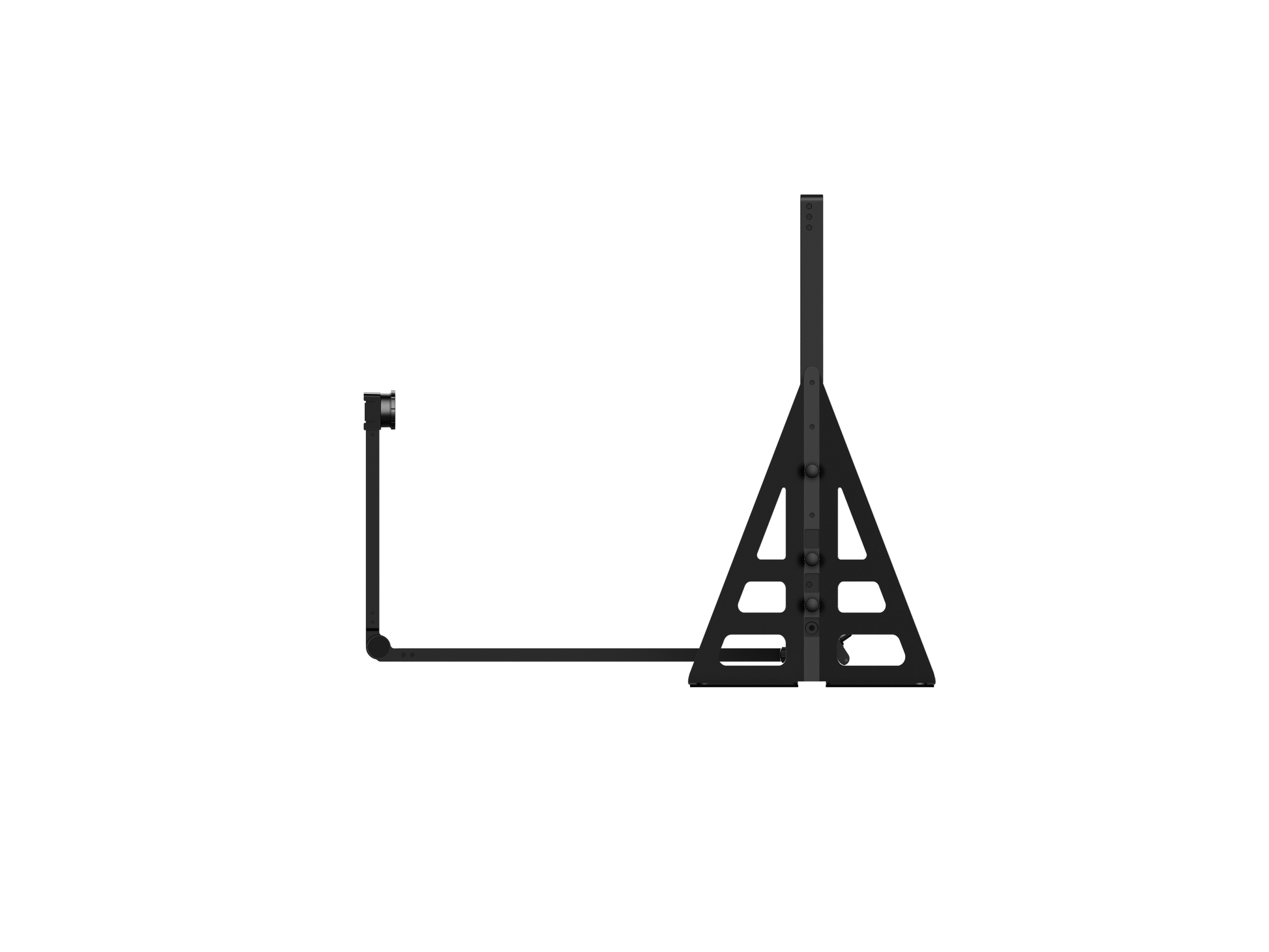

• Camera Arm Assembly
• 4× Neon Dry Erase Markers (unactivated – activate per manual)
• Power Adapter + Power Cable
• USB 3.0 Cable
• Polarizing Filter + Adapter (eliminates laptop screen reflections)

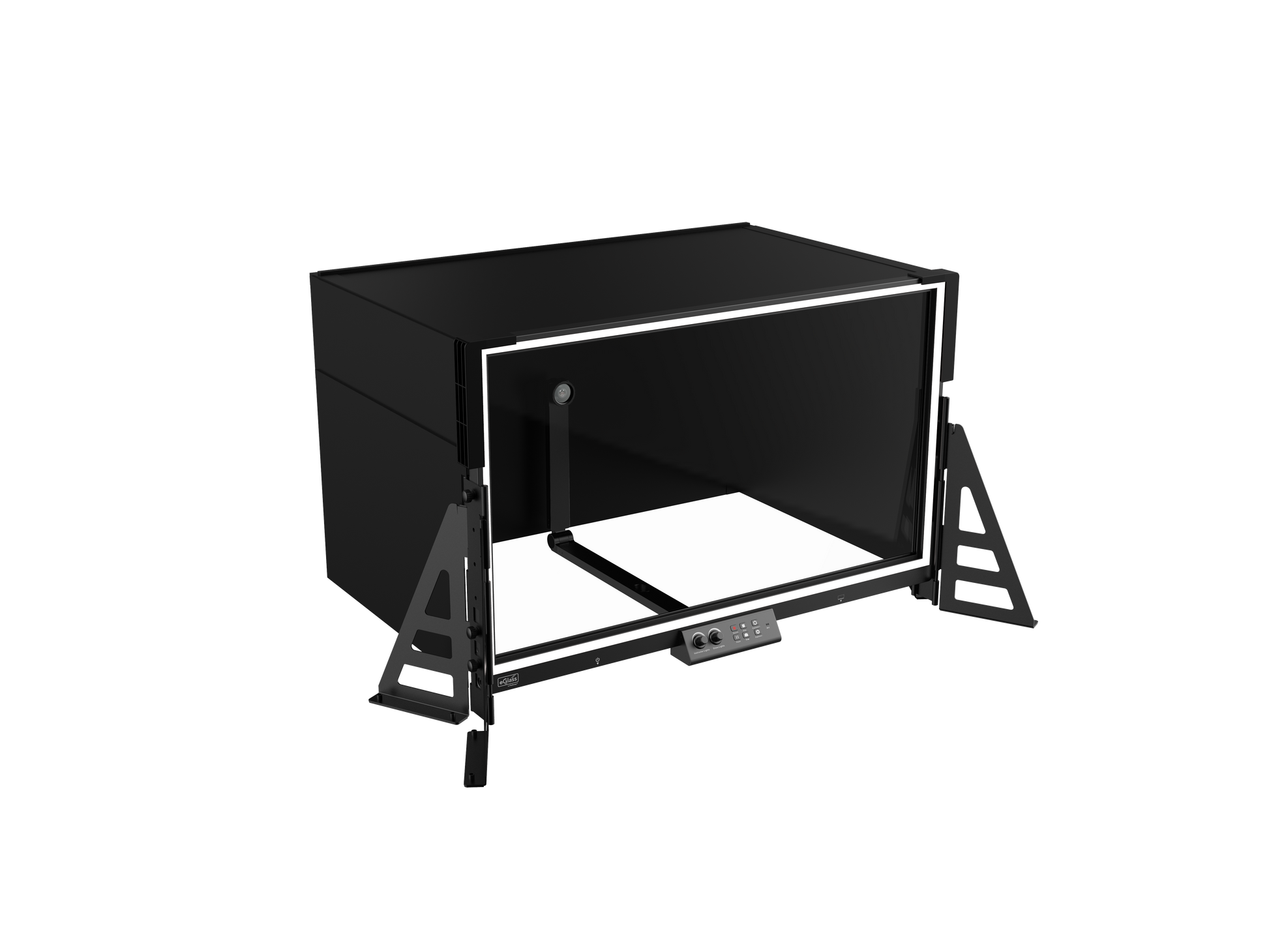

• Anti-Reflection Hood (with brackets & rods – optional but included)
• Cleaning Rag
• Adhesive Mounting Plates (for desk/wall mounting)
• Laptop Stand
• 14× Support Leg Thumb Screws + 2× Camera Arm Thumb Screws
• Quick Start Guide

Software & Compatibility

• eGlassFusion Software (free download from eglass.io/support):
  • Live video streaming, image capture, video recording (MP4/WMV on Windows, MP4 on Mac).
  • Rich media insertion with background removal (Chameleon Bar).
  • Built-in browser, MediaPlay for importing slides/PDFs/images, archive for snapshots/recordings, drawing tools, and more.
• Compatible OS: Microsoft Windows 10, Mac OS Catalina and above.
• System Requirements: 1.6 GHz CPU (2.0 GHz recommended), 1 GB RAM (2 GB+ recommended).
• Plug-and-play via USB 3.0 to computer. Mirror screen to projectors, interactive panels, or smart TVs via HDMI from your laptop.

Technical Specifications

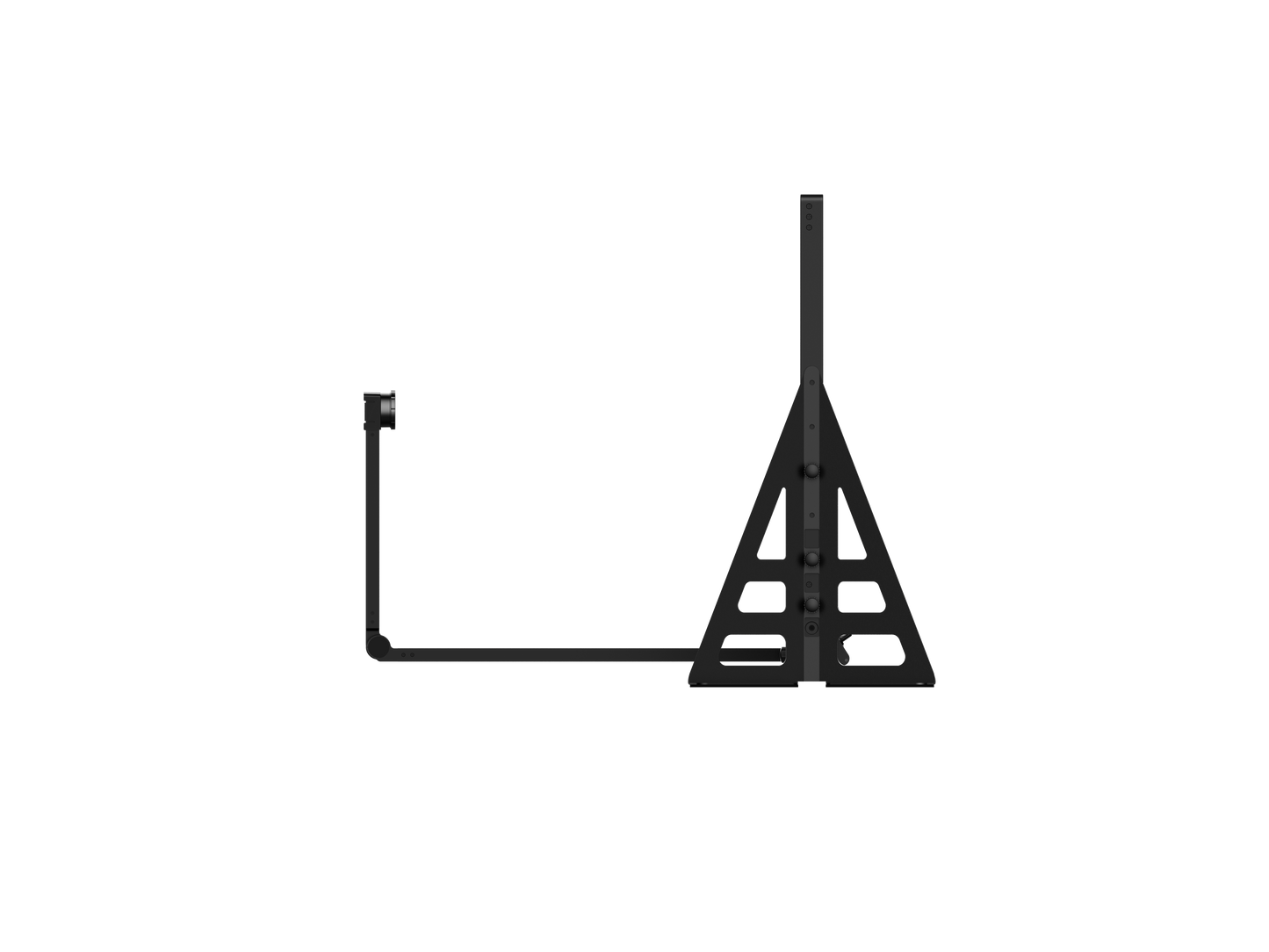

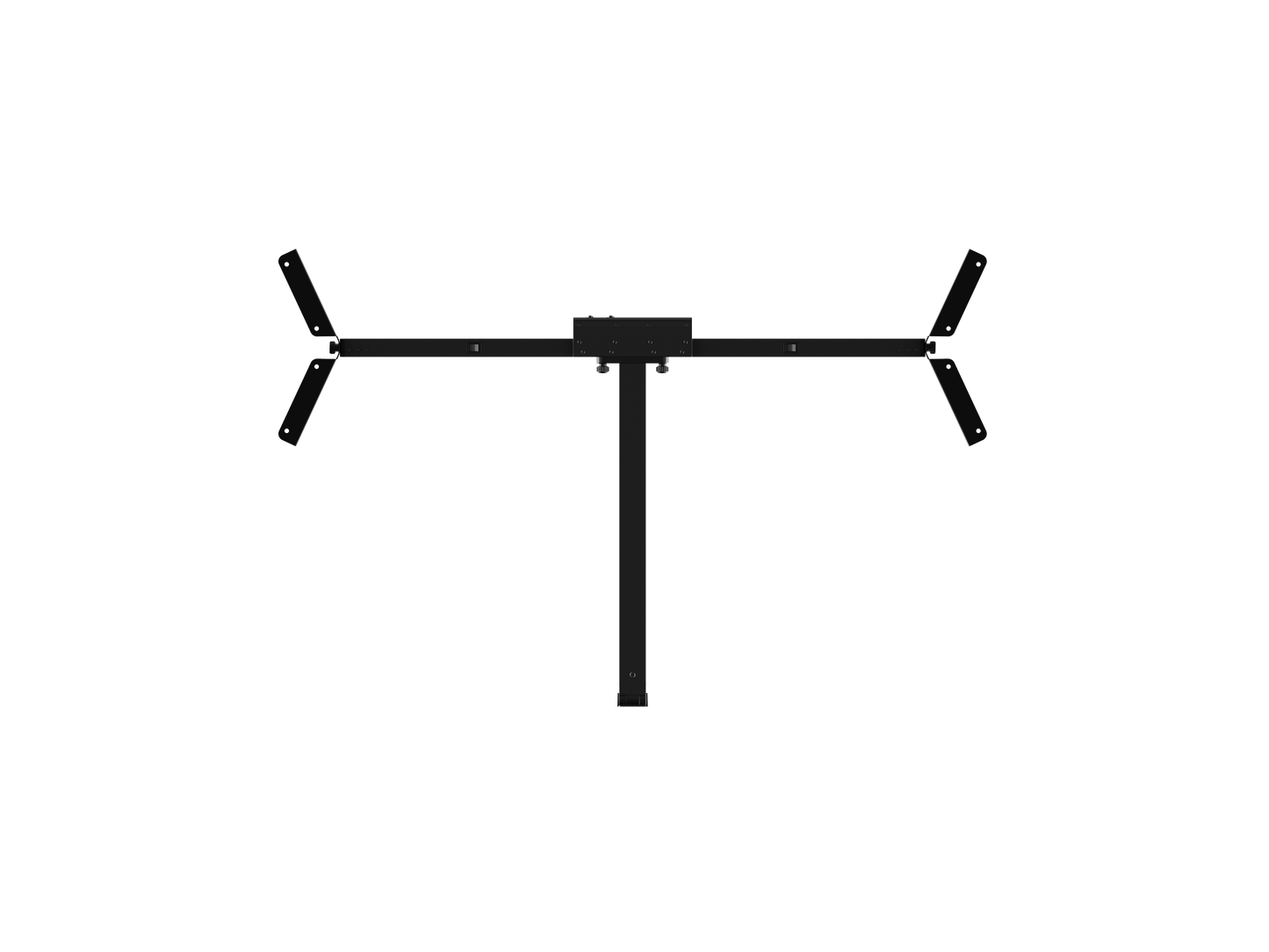

• Dimensions (with legs): 39.39" L × 11.02" W × adjustable height. Camera arm: 19.33" L × 12.09" H.
• Net Weight: 22.04 lbs.
• Power: 24V/3.5A DC (100–240V AC adapter included).
• Camera: 1920×1080 @30fps live/recording; manual focus (factory calibrated).
• Microphone: Built-in 94 dB-SPL with noise reduction.
• Writing Surface: High-strength 6mm tempered glass.

Why Teachers & Schools Love eGlass

• Maintain eye contact and read the room in real time.
• Record lessons once, reuse forever.
• Perfect for differentiated instruction, blended learning, and small group instruction.
• Works in light or dark classrooms; ideal for art, math, science, kindergarten, and higher ed.
